Description

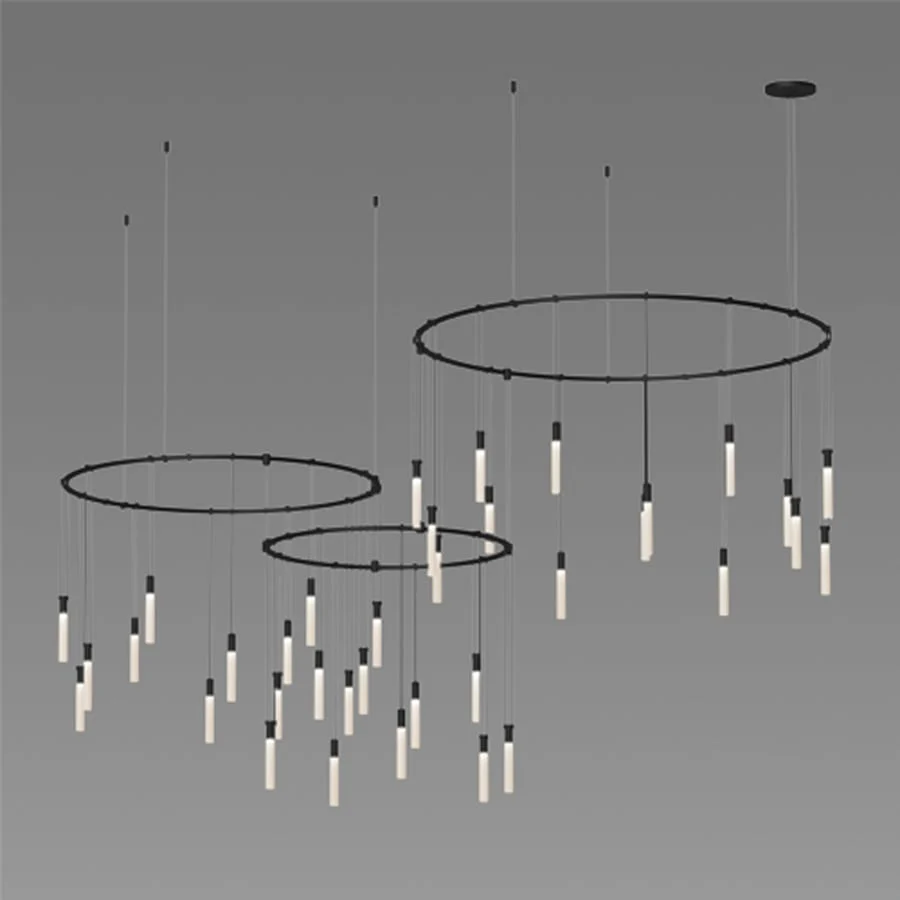

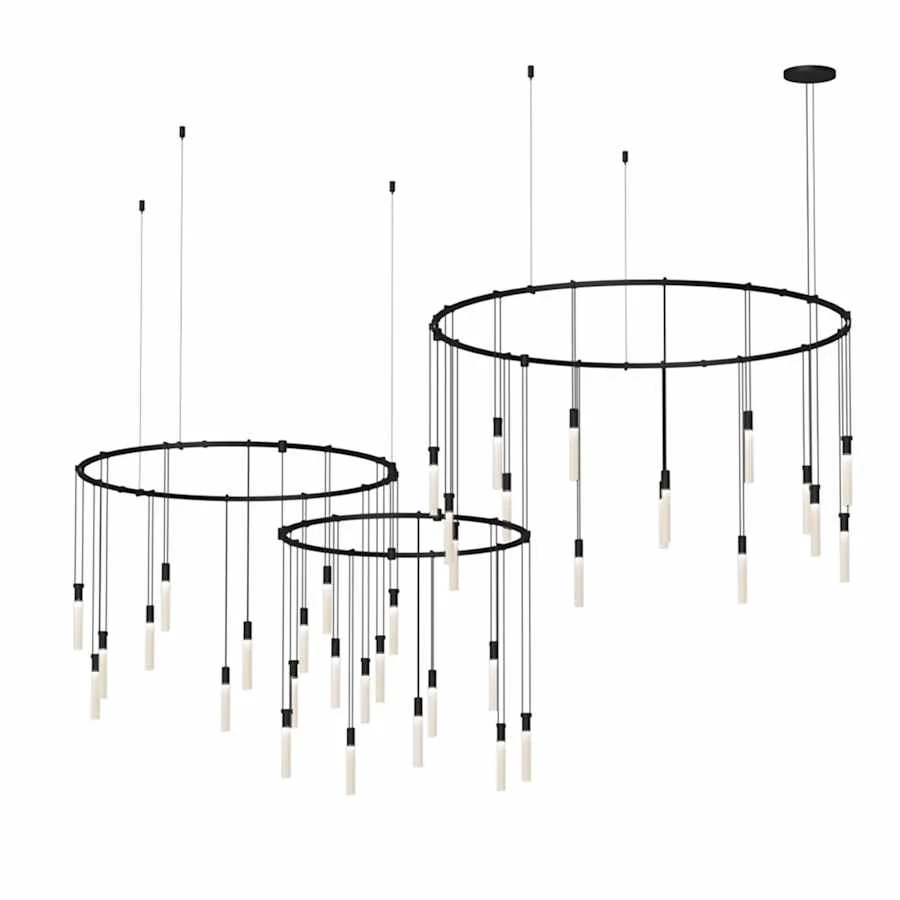

The Suspenders LED system is a delicately scaled, modular system of interconnected elements and suspended LED components. It can be configured as individual lighting sculptures or as a tiered web of infinite scope and variety. Using today’s leading edge technology, Robert Sonneman has reimagined and greatly expanded his original Suspenders concept from the late 1980s with a lighter scale, increased capability, and wider range of precisely scaled luminaires.

Features:

• Includes an outlet box transformer
• Uses energy efficient Integrated LED lighting
• Luminaires emit 3000K color temperature and 90CRI light
• Sloped ceiling compatible
• UL listed for dry locations
• Fixture covered under a 1 year manufacturer warranty
• LED components covered under a 5 year manufacturer warranty

Luminaire Description:

• (LL01) Crystal Ladder Light – Optical Polymer
• (RP01) Crystal Chiclet – Clear Ribbed Seeded Crystal
• (RP02) Etched Chiclet – Clear Etched Glass
• (RP03) Ball – White Etched Cased Glass
• (RP04) Crystal Oval – Clear Ribbed Seeded Crystal
• (RP06) Drum – White Etched Cased Glass
• (RP08) Crystal Teardrop – Clear Ribbed Seeded Crystal
• (RP11) Reflector – Die-Cast Aluminum
• (RP12) Wings – Optical Acrylic
• (RP13) Crystal Double Rod – Clear Ribbed Seeded Crystal
• (RP14) Etched Double Rod – Clear Etched Glass
• (RP15) Crystal Rod – Clear Ribbed Seeded Crystal
• (RP16) Etched Rod – Clear Etched Glass
• (RP17) White Tapered Bell – White Etched Cased Glass
• (RP18) Gray Tapered Bell – Gray Etched Cased Glass
• (RP19) Amber Tapered Bell – Amber Etched Cased Glass

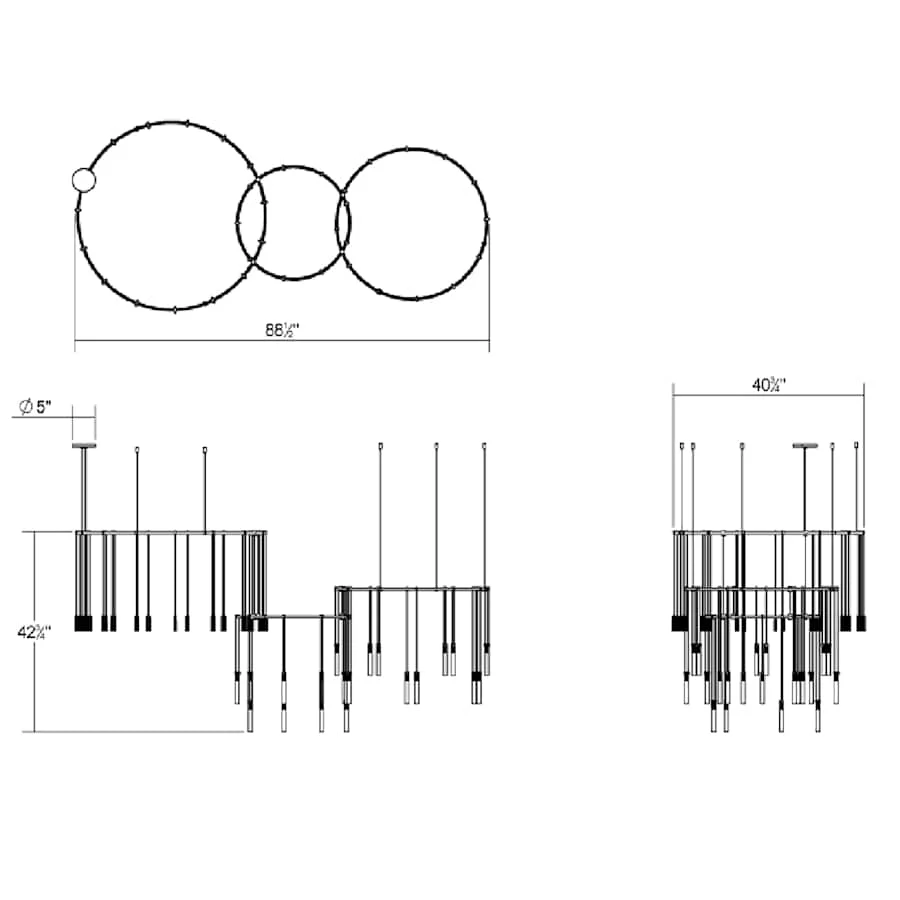

Fixture Dimensions:

• (LL01) – Height: 37″ – Width: 40-96″ – Depth: 40″
• (RP01) – Height: 39″ – Width: 40-96″ – Depth: 40″
• (RP02) – Height: 39″ – Width: 40-96″ – Depth: 40″
• (RP03) – Height: 39″ – Width: 40-96″ – Depth: 40″
• (RP04) – Height: 39″ – Width: 40-96″ – Depth: 40″
• (RP06) – Height: 40″ – Width: 40-96″ – Depth: 40″
• (RP08) – Height: 42″ – Width: 40-96″ – Depth: 40″
• (RP11) – Height: 39″ – Width: 40-96″ – Depth: 40″
• (RP12) – Height: 41″ – Width: 40-96″ – Depth: 40″
• (RP13) – Height: 37″ – Width: 40-96″ – Depth: 48″
• (RP14) – Height: 37″ – Width: 40-96″ – Depth: 48″
• (RP15) – Height: 43″ – Width: 40-96″ – Depth: 40″
• (RP16) – Height: 43″ – Width: 40-96″ – Depth: 40″
• (RP17) – Height: 41″ – Width: 40-96″ – Depth: 40″
• (RP18) – Height: 41″ – Width: 40-96″ – Depth: 40″
• (RP19) – Height: 41″ – Width: 40-96″ – Depth: 40″

Electrical Specifications:

• (LL01) – Wattage: 89 – LED Modules: 89 – Lumens: 5340
• (RP01) – Wattage: 57.6 – LED Modules: 36 – Lumens: 4140
• (RP02) – Wattage: 57.6 – LED Modules: 36 – Lumens: 4140
• (RP03) – Wattage: 82.8 – LED Modules: 36 – Lumens: 5760
• (RP04) – Wattage: 82.8 – LED Modules: 36 – Lumens: 5760
• (RP06) – Wattage: 108 – LED Modules: 36 – Lumens: 7560
• (RP08) – Wattage: 82.8 – LED Modules: 36 – Lumens: 6300
• (RP11) – Wattage: 108 – LED Modules: 36 – Lumens: 7560
• (RP12) – Wattage: 57.6 – LED Modules: 36 – Lumens: 4140
• (RP13) – Wattage: 122.4 – LED Modules: 36 – Lumens: 8640
• (RP14) – Wattage: 122.4 – LED Modules: 36 – Lumens: 8640
• (RP15) – Wattage: 61.2 – LED Modules: 36 – Lumens: 4320
• (RP16) – Wattage: 61.2 – LED Modules: 36 – Lumens: 4320
• (RP17) – Wattage: 129.6 – LED Modules: 36 – Lumens: 7920
• (RP18) – Wattage: 129.6 – LED Modules: 36 – Lumens: 7920
• (RP19) – Wattage: 129.6 – LED Modules: 36 – Lumens: 7920
